Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Place of Origin : Guangdong, China

Brand Name : EASY

Certification : CE

MOQ : 1

Price : $2,500-2,600

Plate type : Screen Printer

Voltage : AC 220V 50/60Hz

Dimensions : 950x1000x1350mm

Weight : 135 KG

Max print area : 350*250mm

Printing speed : 20pcs/min

Print type : Screen printer

Power supply : AC220V 50Hz 60w

Print size round : Max.φ120mm*250mm

Print size flat : Max. 350mm*250

Printing color : One color

Machine size : L950xW1000xH1350mm

Automatic grade : Semi-Automatic

Color station : 1Color/ 1 Station

Core components : Bearing, Motor, Pump, Gear, PLC, Pressure vessel, Engine, Gearbox

Contact Now

Product Description
This machine is a multi-functional silkscreen printing machine that is fitting on all round, oval, flat, rectangle, and cone shape bottles. Wide apply on lipstick, cosmetic bottles, scour bottles, drink bottles, ceramic mugs, glasses cups, stadium cups, paper cups, etc..
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

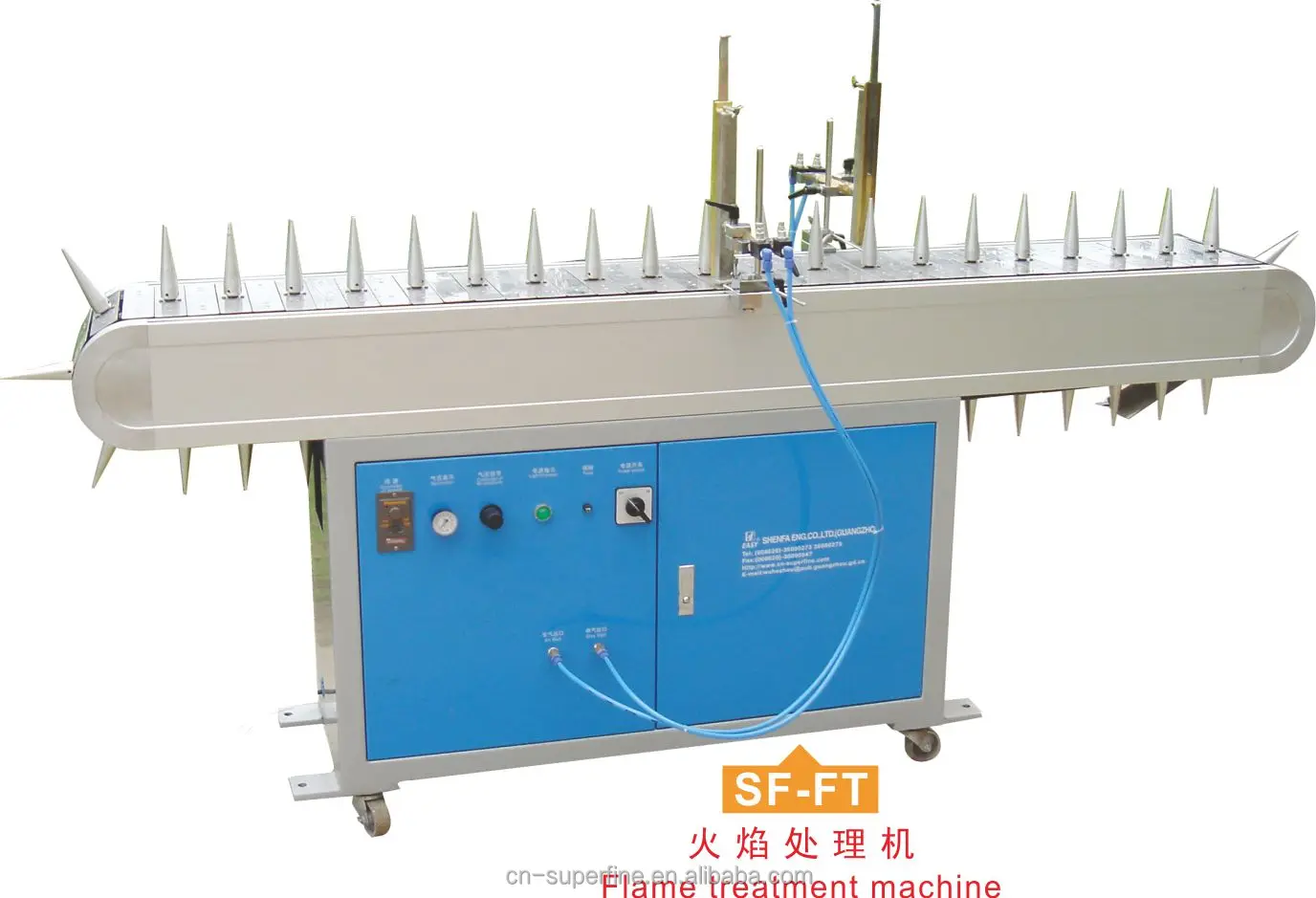

Flaming treatment

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Semi-automatic screen printing

.
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

UV drying

Product Specifics
Model
SF-400
Print type
Screen printer
Power supply
AC220V 50Hz 60w
Print size
Max. φ120mm*250mm (round)
Max speed
20pcs/min
Printing color
one color
Machine size
L950xW1000xH1350mm
Application
Perfume Bottles, Glass/plastic/flat/round bottles
Details Images
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

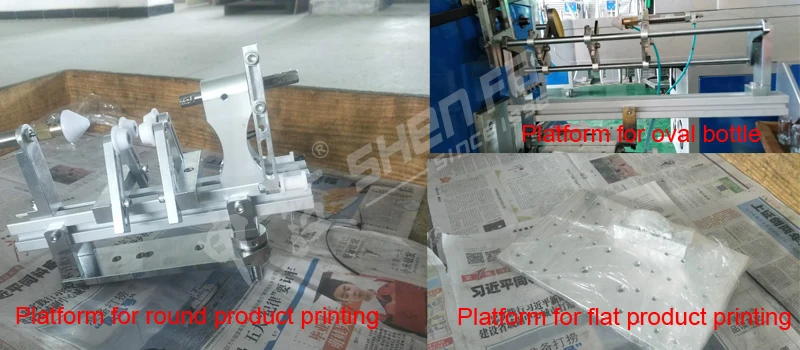

Machine equipped with three platform to print round/oval/flat products
1. Controlled by microprocessor,easy operation,running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame,low weight and high intensity,adjust convenient.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Pneumatic part of the installation of the German FESTO tubes and Air valve, Ormon Sensor, SMC Cylinder.
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

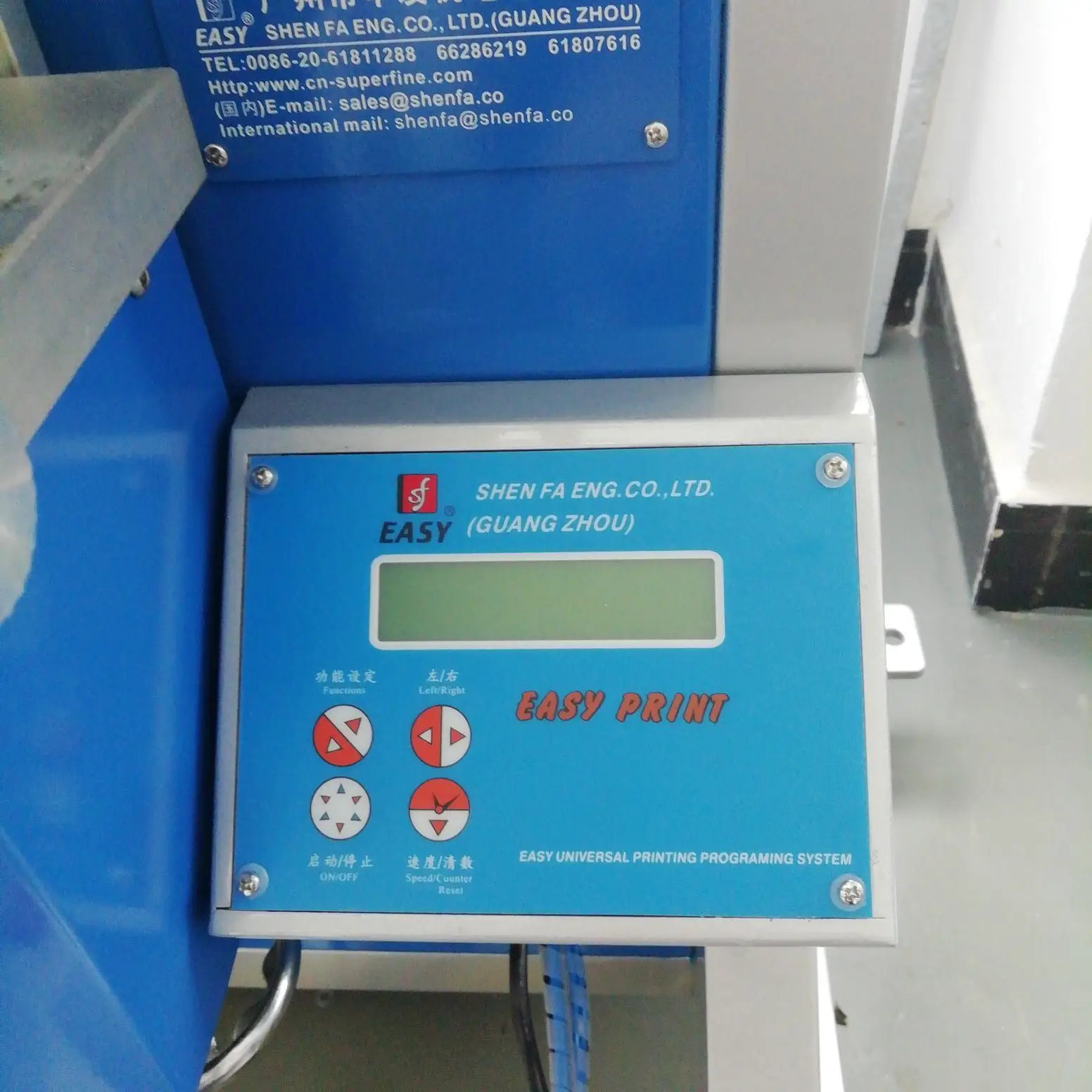

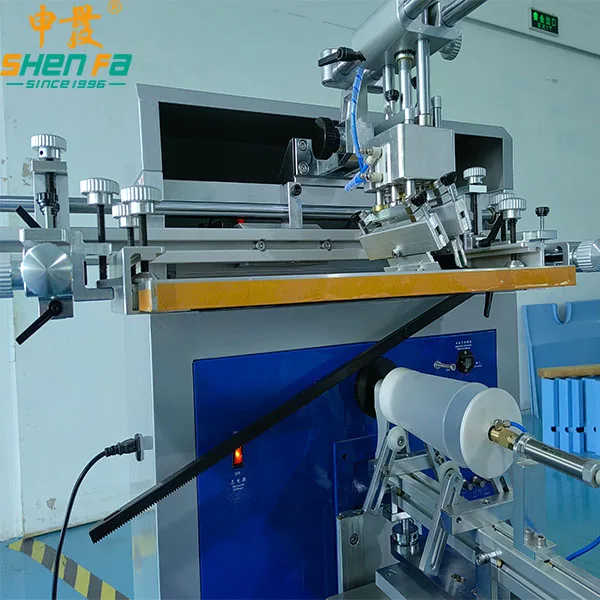

Easy Operation

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

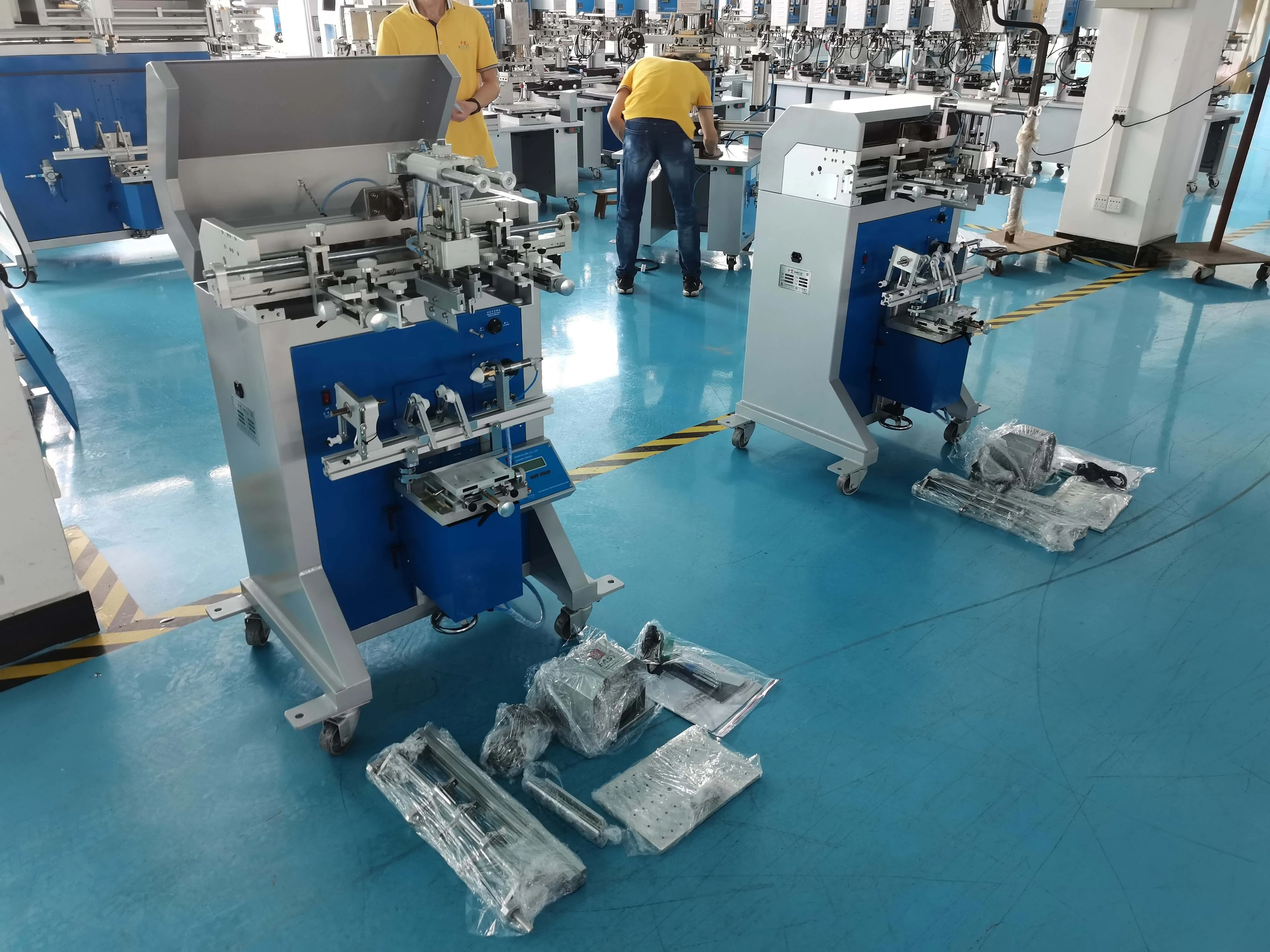

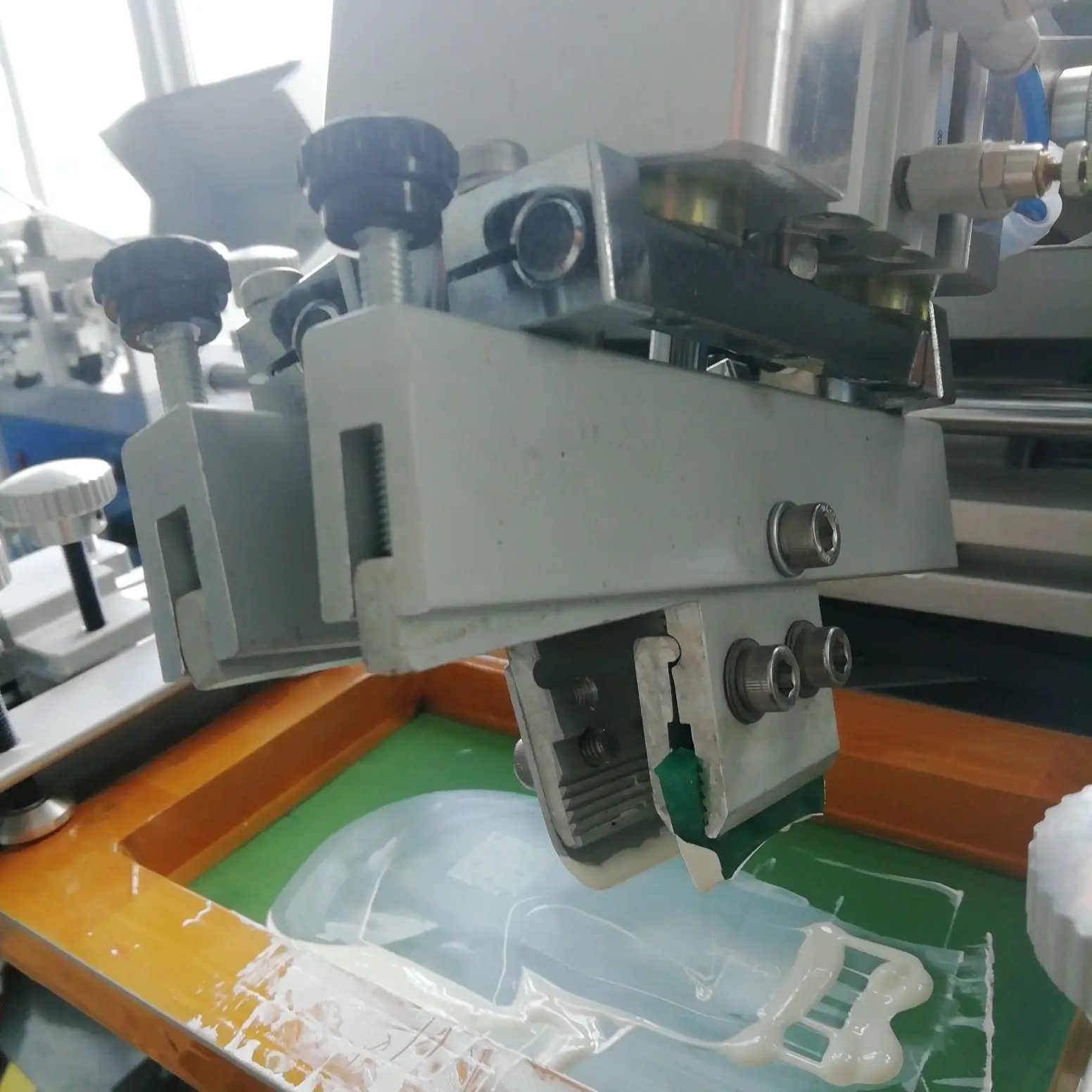

Screen printing unit

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Recommend Products
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

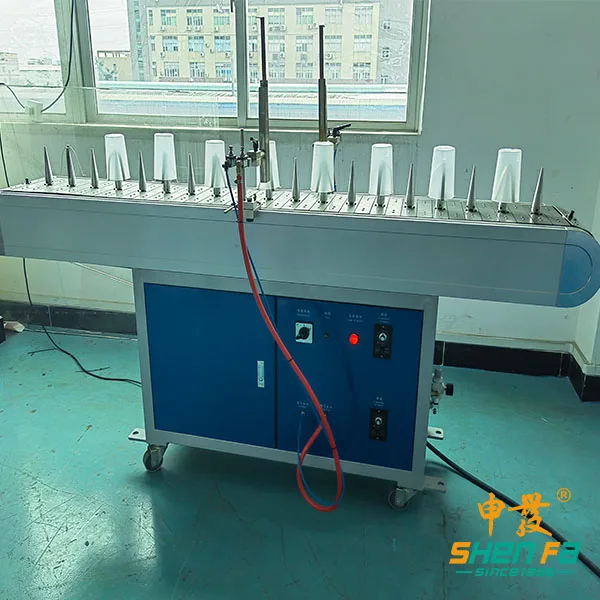

Flaming treatment machine

Flaming treatment machine batch production in each two week. Monthly output 20sets.
Delivery time: with 14days
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

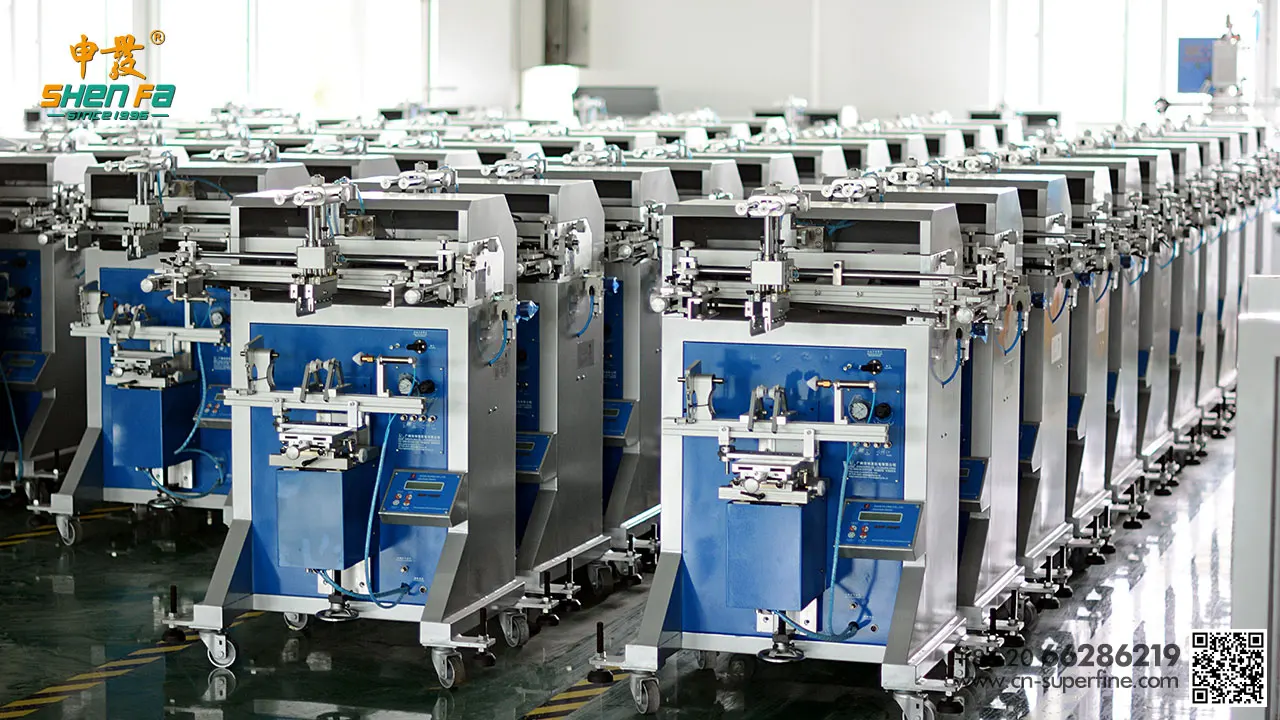

Semi-automatic screen printer

Semi-automatic screen printing machine batch production in each week. Monthly output 100sets.
Delivery time: with 7days
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

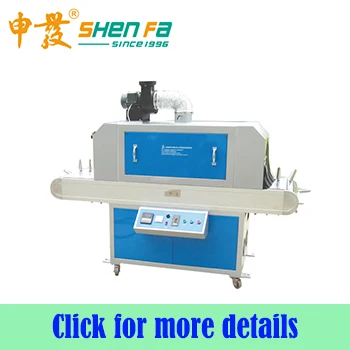

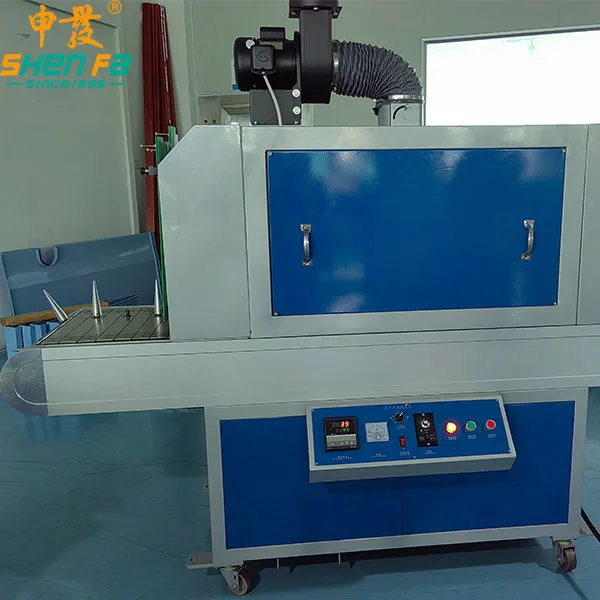

UV oven machine

UV oven machine batch production in each two week. Monthly output 20sets.

Delivery time: with 14days
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Auto Screen Tense Machine

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

UV Vacuum Exposue Machine

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Printing Consumables

Packing & Delivery
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
To ensure the safety of machine during transportation, Machines with professional, environmentally friendly, convenient and efficient packagin.
Company Profile
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
COMPANY PROFILE
SHENFA Company was founded in 1996. It locates in Huadu Airport Economic Zone of Guangzhou City, with a 50,000 square meter production plant. Shenfa is a manufacturer dedicated to the field of specialty printing equipment, including screen printing machine, hot-stamping machine, pad printing machine, labeling machine and 3D Digital inkjet printing machine.

SHENFA company sets up professional teams of Engineering R&D Center, CNC Machinging Center, Assembling and Commissioning Center, Marketing and After-Sales Service Center.
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

R&D Center


Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

CNC Center

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Assembling Center

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Commissioning Center

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Sales Center

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

After-Sale Service Center

Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Cooperation Suppliers

Machines main components from Rexroth, Schneider, SMC, Mitsubishi etc world famous brand.
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying

Cooperation Customers

Machines widely use in Cosmetic packaging and daily care packaging, like bottles, jars, caps, lipsticks, pen barrels etc
Warranty&After-sale Services
Multi-Functional Semi-Automatic Screen Printing Machine for Cylindrical Printing with UV Drying
1.All Products have a full year warranty from the date you receive the machines.
